Product Introduction:

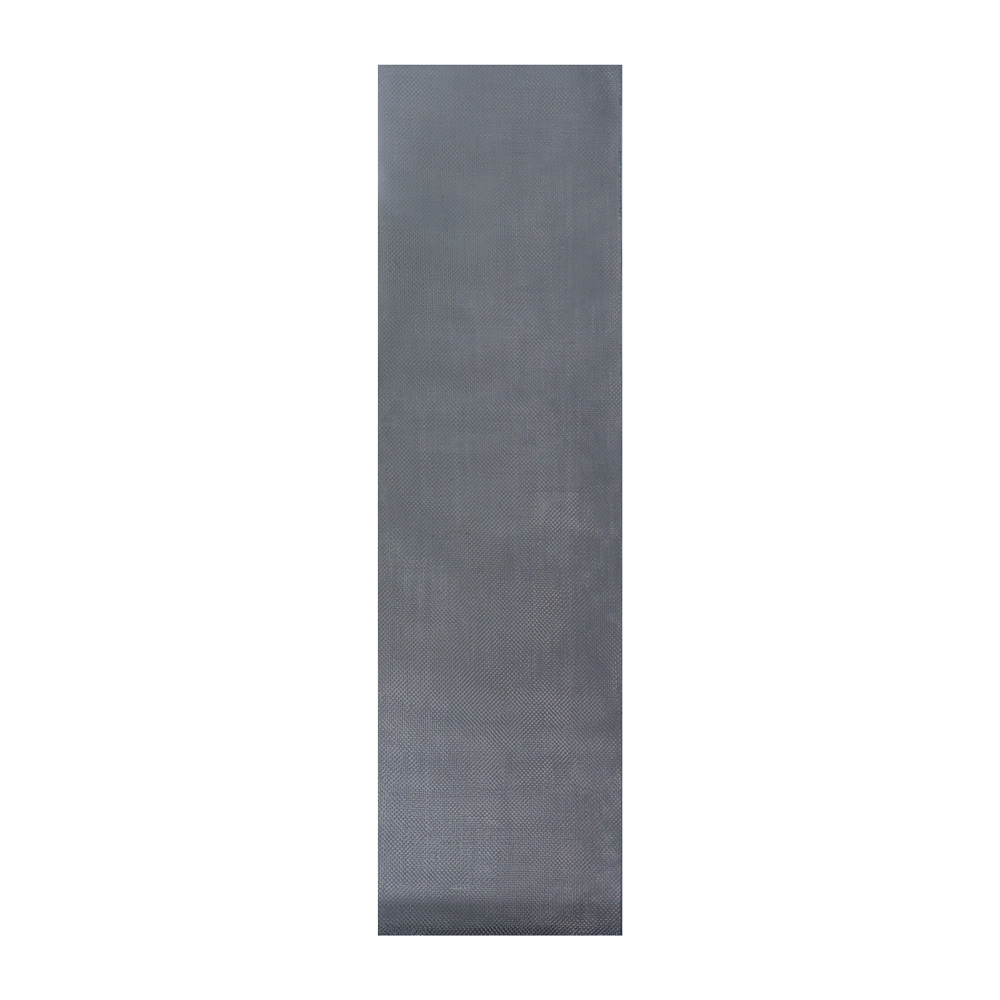

Carbon-Carbon Long Fiber Plate is a short-fiber reinforced carbon-carbon flat plate produced by uniformly dispersing chopped carbon fibers, impregnating them with resin, molding under pressure, followed by liquid-phase impregnation densification, high-temperature purification, and machining.
Production Process:
Short-fiber plate blank → Machining → Finished product
Product Advantages:
Lightweight, high modulus, strong corrosion resistance, easy handling due to low density, low void rate, and excellent machinability.
|
Density g/cm3 |
Bending Strength MPa |
Tensile Strength Mpa |
Compressive Strength Mpa |
Interlayer Shear Strength Mpa |
Resistivity um·Ω |
Thermal Conductivity (Vertical Direction) W/m·K |
Ash Content ppm |
Graphitization Temperature ℃ |
Size mm |
| 1.5 | 180 | 210 | 140 | 10 | 23 | 6.5 | ≤200 | ≥2000 | l≤2600 |
The above data are representative values and are not guaranteed values.
