Product Introduction:

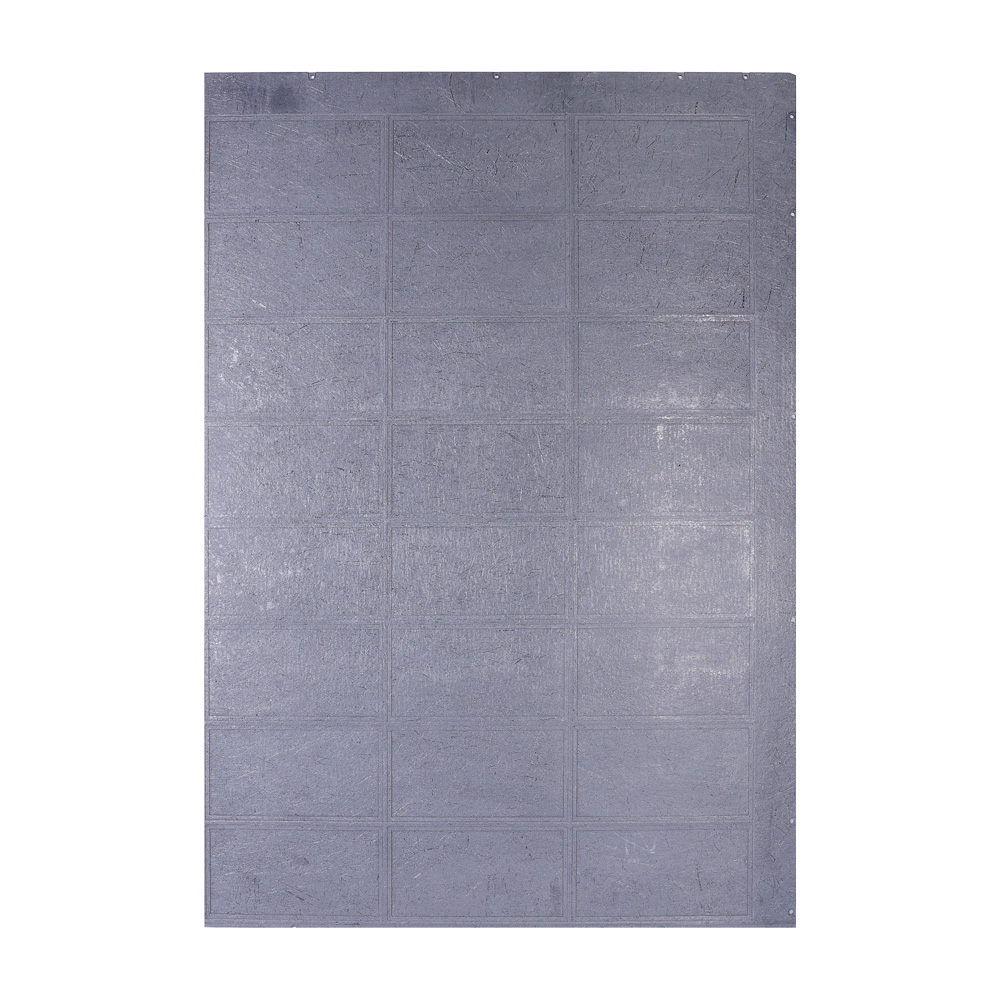

Carbon-Carbon Short Fiber Plate is a short fiber-reinforced carbon-carbon flat plate produced by uniformly dispersing chopped carbon fibers, impregnating them with resin, molding under pressure, followed by liquid-phase impregnation densification, high-temperature purification, and machining.
Production Process:

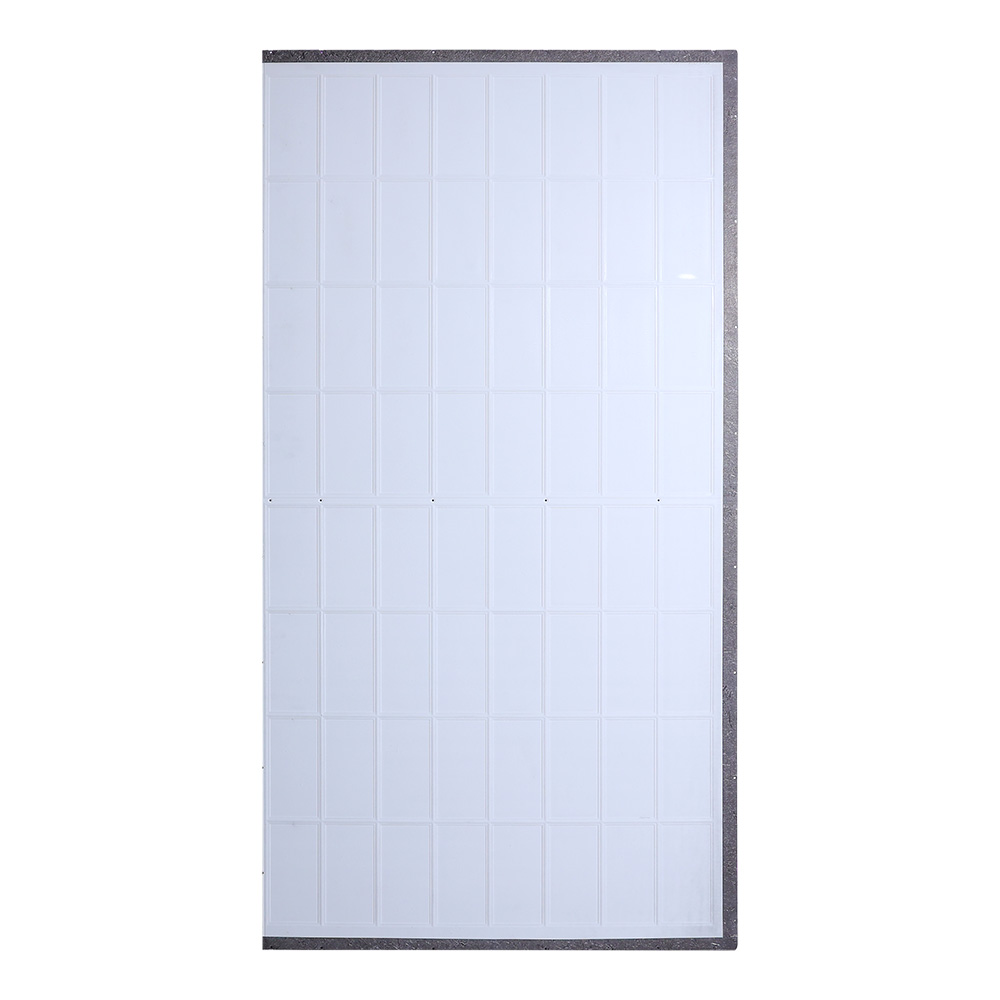

Short fiber plate blank → Machining → Yttrium oxide coating → Finished product
Product Advantages:
Lightweight, high corrosion resistance, excellent high-temperature mechanical properties approaching graphite materials, superior thermal shock resistance, lightweight for easy handling, low porosity.
|
Density g/cm3 |
Bending Strength MPa |
Tensile Strength Mpa |
Compressive Strength Mpa |
Interlayer Shear Strength Mpa |
Resistivity um·Ω |
Thermal Conductivity (Vertical Direction) W/m·K |
Ash Content ppm |
Graphitization Temperature ℃ |
Size mm |
| 1.5 | 180 | 165 | 140 | 20 | 18 | 8.5 | ≤200 | ≥2000 | l≤2600 |
The above data are representative values and are not guaranteed values.
