Product Introduction:

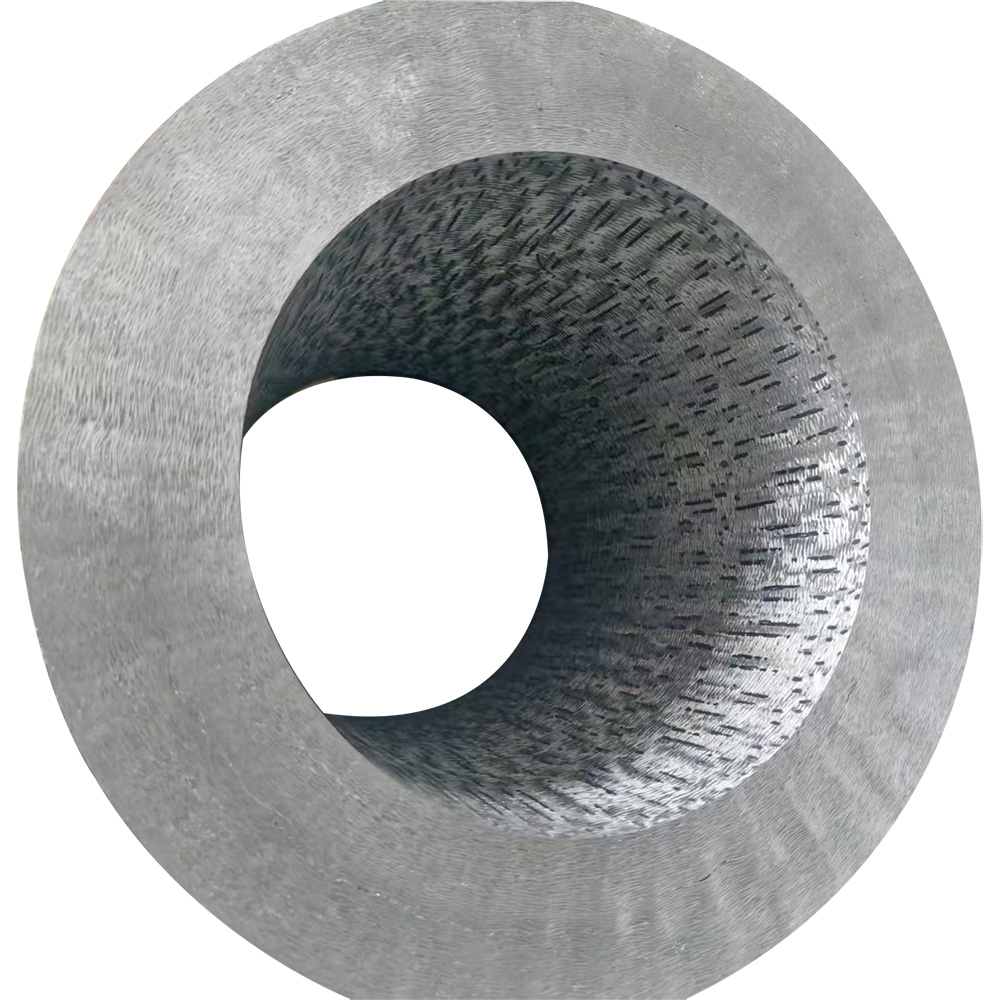

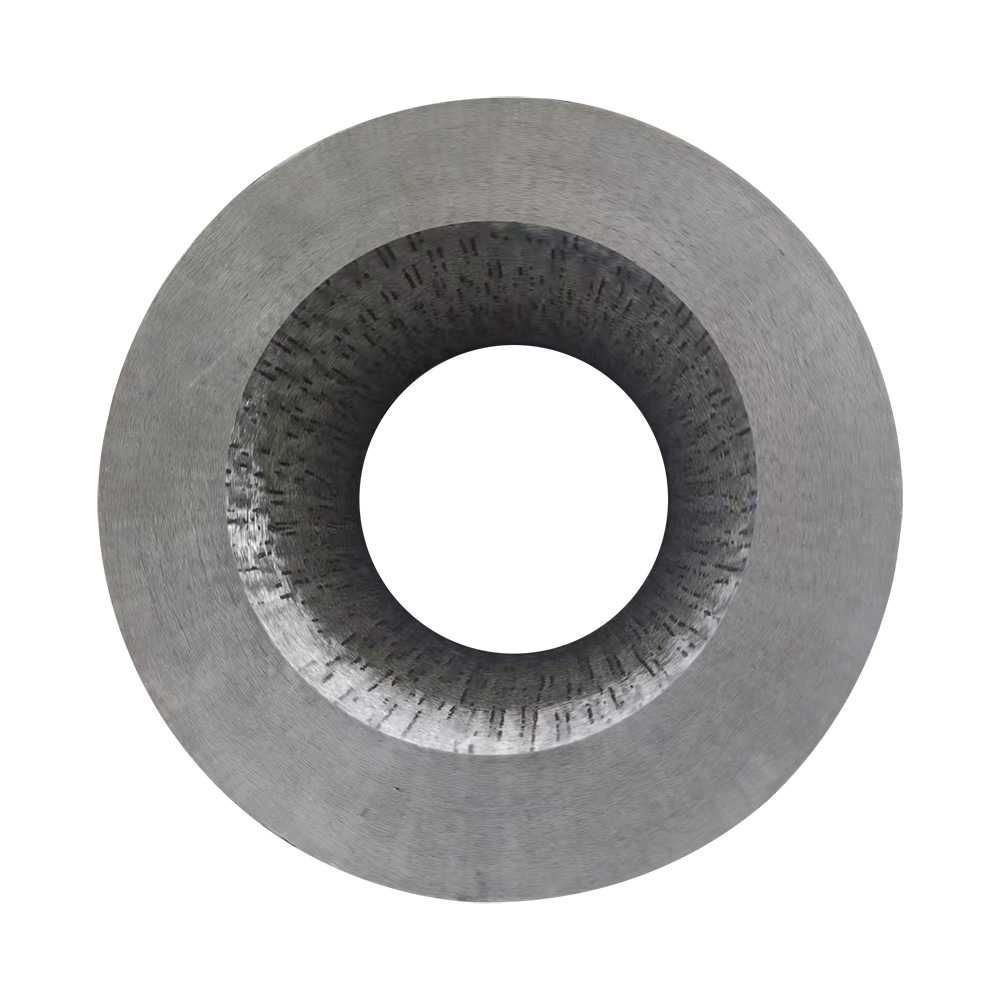

High-strength carbon fbers of Grade T700 are used to form preform ligands through 3D weaving. Subsequently, carbon-carbon composite material molds are prepared by combining liquid phase deposition with high-temperature and high-pressure impregnation carbonization. The fnal density reaches 1.6–1.65 g/cm³. After testing under conditions of 2000–2300 °C and 20–50 MPa pressure, the molds meet the customer's application requirements.
Product advantages:
High Strength / Corrosion Resistance / Resistance to Thermal Shock Cracks
Tooling for Special Ceramic Sintering Process.
|
Density g/cm3 |
Bending Strength MPa |
Tensile Strength Mpa |
Compressive Strength Mpa |
Interlayer Shear Strength Mpa |
Resistivity um·Ω |
Thermal Conductivity (Vertical Direction) W/m·K |
Ash Content ppm |
Graphitization Temperature ℃ |
Size mm |
| 1.65 | 240 | 280 | / | 20 | / | 15 | ≤400 | ≥2000 | d≤600 |
The above data are representative values and are not guaranteed values.
